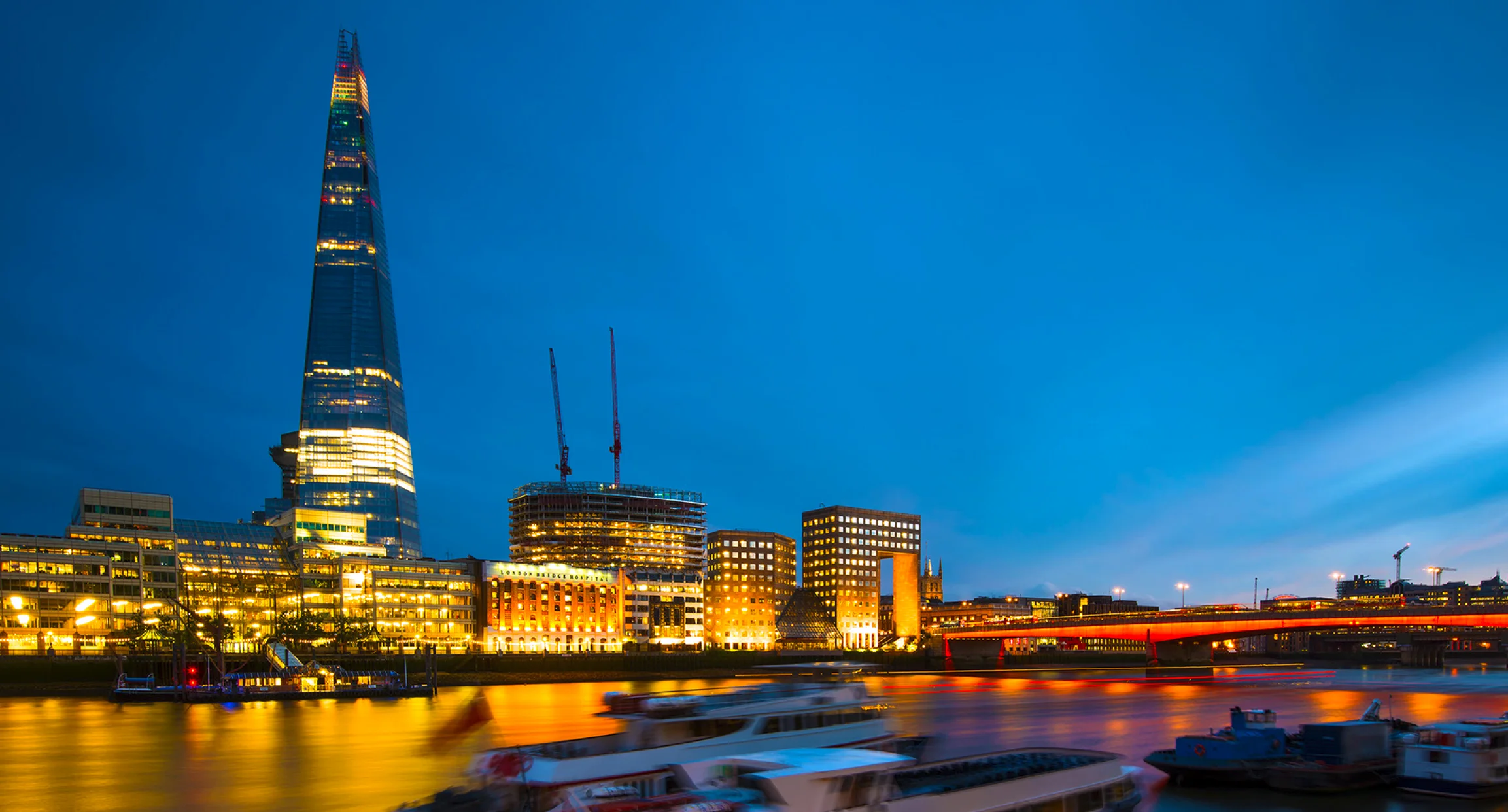

The Shard at London Bridge
London, England
Approx. 111,480 sq.m./1,200,000 sq.ft.
(72- Storey Commercial High-Rise Building, including Retail, Office, Hotel and Residential, with Renzo Piano Building Work Shop).

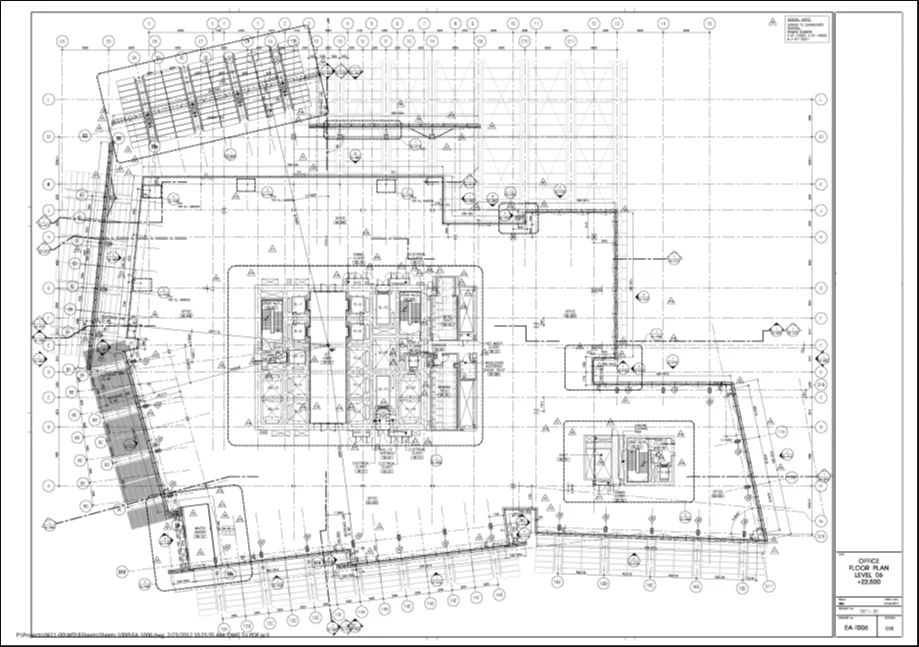

- I was Responsible for Preparing Construction Documents, Working Drawing Package, Detailed Drawings Package (Exit Stair Package, Washroom Package, and General Metals).
![1.jpg](https://images.squarespace-cdn.com/content/v1/5871ba96f5e2314a0bedb91a/1484125240079-P8ULVSWBIIJNZ6EOXSM8/1.jpg)
![2.jpg](https://images.squarespace-cdn.com/content/v1/5871ba96f5e2314a0bedb91a/1484125240906-M6PV1LVHQBZYJHQV33ZB/2.jpg)
![4.jpg](https://images.squarespace-cdn.com/content/v1/5871ba96f5e2314a0bedb91a/1484125245804-2CSK340C64WDKZRR74CX/4.jpg)
![5.jpg](https://images.squarespace-cdn.com/content/v1/5871ba96f5e2314a0bedb91a/1484125244461-JL31PQRPF7C4V9SDDNST/5.jpg)
![6.jpg](https://images.squarespace-cdn.com/content/v1/5871ba96f5e2314a0bedb91a/1484125245732-DHAOH9Y4TQ4ZDPGIPCV8/6.jpg)
![7.jpg](https://images.squarespace-cdn.com/content/v1/5871ba96f5e2314a0bedb91a/1484125247068-BZC23GMWYO6F2XHXFRWQ/7.jpg)
![8.jpg](https://images.squarespace-cdn.com/content/v1/5871ba96f5e2314a0bedb91a/1484125247064-LLXXRC83Z3FIMTTD14UG/8.jpg)
